SafetyShield window film is engineered to safeguard your home or business assets from the destructive forces of natural disasters. Protect your property with a solution you can trust for reliable and effective security.
SafetyShield films offer exceptional protection against natural disasters, ensuring the safety and security of your property and occupants. These advanced films keep glass intact during severe weather events, preventing shattering and reducing hazards. With certified installation by trained partners, you can trust in the superior quality and effectiveness of our products. Additionally, ongoing support and training for installers guarantee long-term reliability. Experience the peace of mind that comes with SafetyShield, the trusted choice for comprehensive protection against natural disasters.
Our window films are engineered to safeguard both people and property from a variety of threats including natural disasters, explosions, and break-ins.
Benefit from the extensive experience of our Premier Partners who have years of experience in government, institutional, and industrial security glazing systems.
We offer multiple combinations of glass and frame strengthening upgrades, ensuring a perfect fit for your building’s unique requirements.
Our security films are also available with energy-efficient coatings, helping to reduce HVAC costs and glare, contributing to a more comfortable indoor environment.
Madico films meet stringent performance conditions under EN, ISO, and ASTM test and certification methods, guaranteeing reliable protection.
All installations are carried out by factory-certified professionals, ensuring the highest standards of quality and performance.
From design and specification to installation and aftercare, our dedicated technical, sales, and support staff provide full support to ensure your complete satisfaction.
There are four different patented and proprietary Anchoring Restraint System solutions available – each with its own level of performance. Our highly-trained Premier Partners will work with you to select the appropriate Anchoring Restraint System, in conjunction with the application of our safety film, to meet your specific criteria and threat concern.

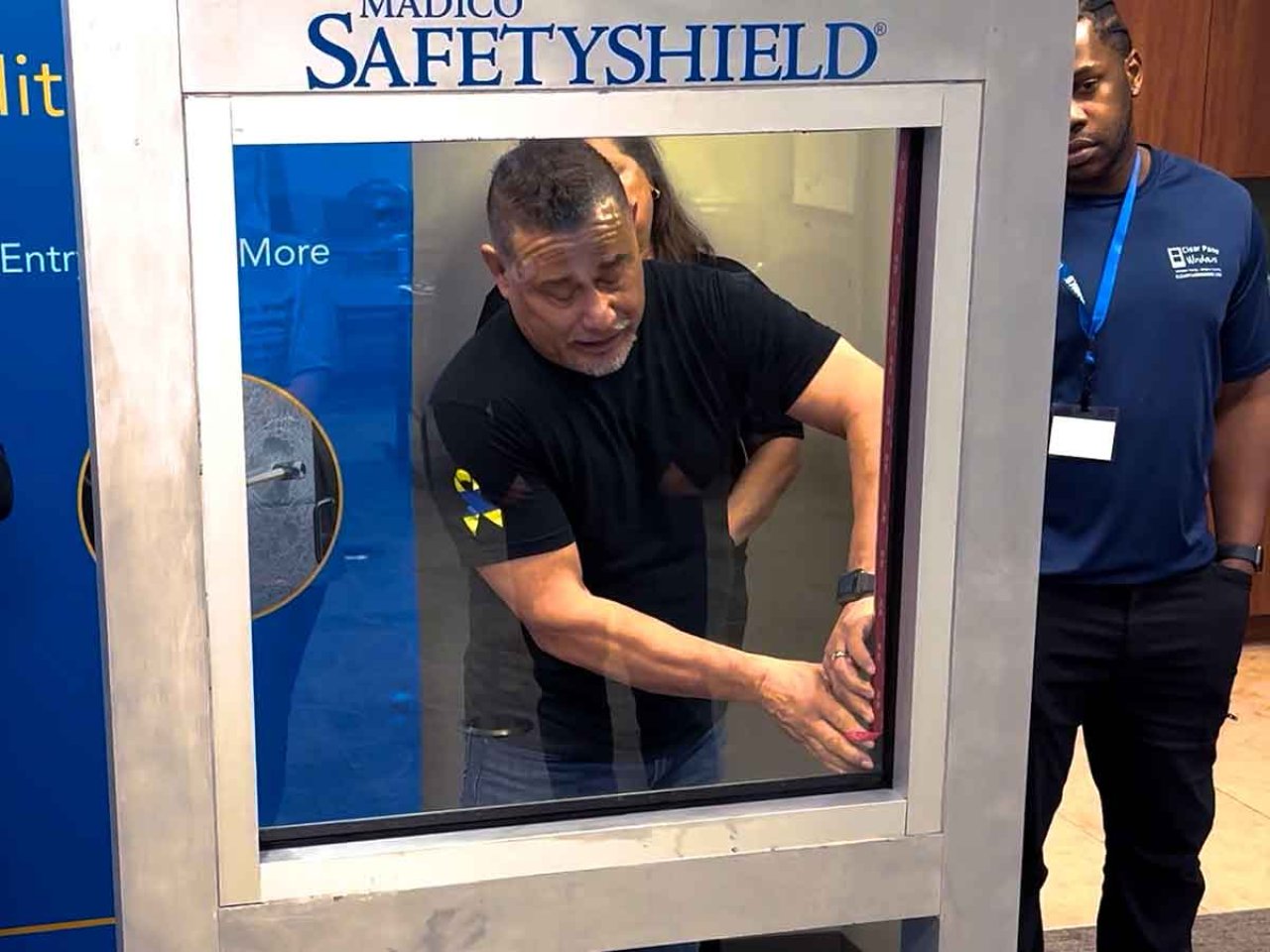

FrameGardTMThe FrameGard Anchoring System when used in conjunction with SafetyShield film has been specifically engineered to keep treated glass within the frame when an incident has occurred. It is a “mechanical” attachment system that clamps the filmed glass to the window frame. This system improves and extends the principle of edge battening by incorporating a specific movement zone (patent applies), which allows the film to move under the applied load without putting excessive force on the fixings and frame. The benefit of FrameGard is that it allows engineers and installers to precisely determine torque settings for each individual installation, creating a truly custom solution.
GullWing®
The GullWing Anchoring System, when combined with Madico SafetyShield window film, is designed to absorb and disperse the energy that the filmed glass is subjected to and transfer the reduced load over the entire glazed opening. By absorbing and distributing the load, the system is designed to retain the filmed glass in the opening and thus reduce the probability of glass fragments and debris from entering the room.

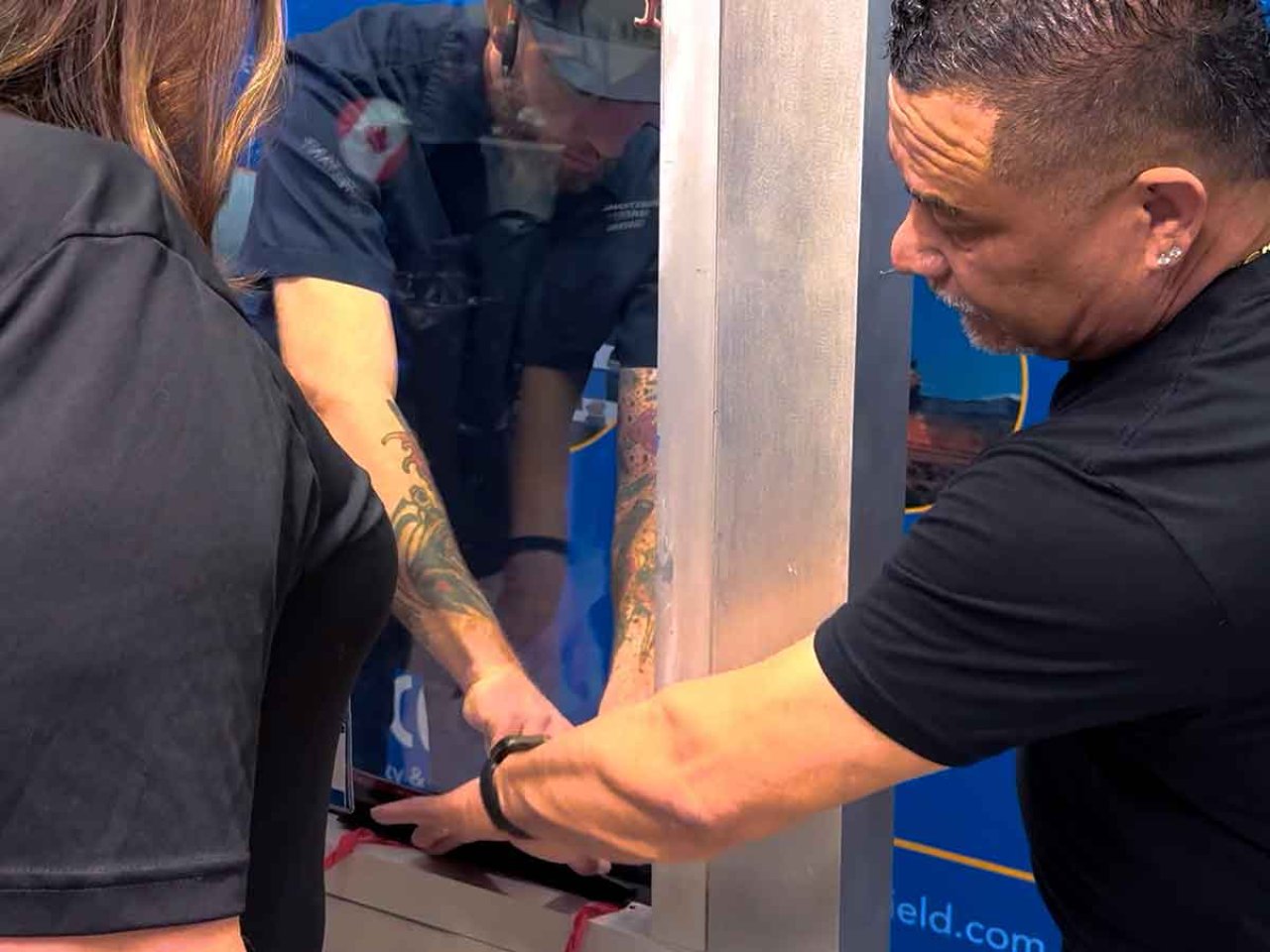

Wet Glaze
In the event of glass breakage, the Wet Glaze Anchoring System, when combined with SafetyShield window film, is designed to absorb and disburse the energy that the filmed glass is subjected to and transfer the reduced load over the entire glazed opening. By absorbing and distributing the load, the system is designed to retain the filmed glass in the opening and thus reduce the probability of glass fragments and debris from entering the room.
The Wet Glaze system is economically viable in retrofit applications and is built around a triangular sealant joint connecting the film to the supporting framing members. To achieve acceptable performance, a very high-performance sealant must be used. We recommend Dow Corning® 995 Silicone Structural Adhesive or GE SCS2000 SilPruf™ Sealant.
LifeLine®
The LifeLine Anchoring System is based on a simple principle, “restraint”. This system is one of the most effective ways to mitigate injury and reduce property damage in the event of a catastrophic blast. The LifeLine System works in conjunction with a standard application of SafetyShield film. The system’s energy-absorbing cords slow down and catch the filmed lite of glass, often returning it to the direction in which it came. This straight-forward system has been blast tested up to 10 psi. Due to its somewhat industrial appearance, LifeLine is primarily used in factory or manufacturing applications.
| Product specs | |
| % Visible Light - Trans. | 88% |
| % Visible Light - Reflected External | 9% |
| % Visible Light - Reflected Internal | 9% |
| % Visible Light - Glare Reduction | 1% |
| % Total Solar Energy - Trans. | 75% |
| % Total Solar Energy - Reflected External | 7% |
| % Total Solar Energy - Absorbed | 18% |
| Shading Coefficient (SC) | 0.93 |
| Solar Heat Gain Coefficient (SHGC) | 0.81 |
| U Factor | 1.05 |
| UV Rejection | ≥ 99% |
| Emissivity | 0.91 |
| Light to Solar Gain | 1.09 |
| Total Solar Energy Rejected (TSER) | 20% |
| IR Rejection (see PDF for details) | 32% |
| Infrared Energy Rejection (IRER) | 23% |
| Film Thickness | 0.008" |
| Structural Components | 0.007" |
| Structure | Single Ply |
| Adhesive Type | Acrylic Pressure Sensitive |
| Longitudinal Tensile Strength | 28,000 PSI Avg. MD/TD |
| Traverse Tensile Strength | 36,000 PSI Avg. MD/TD |
| Break Strength | 210 lbs. Per Inch (Width) |
| Longitudinal Elongation at Break | 150% |
| Traverse Elongation at Break | 100% |
| Yield Strength | 14,000 PSI Avg. MD/TD |
| Elongation at Yield | 120% |
| Peel Strength | 5 to 6 lbs. Per Inch Width |
| Product specs | |
| % Visible Light - Trans. | 87% |
| % Visible Light - Reflected External | 9% |
| % Visible Light - Reflected Internal | 10% |
| % Visible Light - Glare Reduction | 2% |
| % Total Solar Energy - Trans. | 74% |
| % Total Solar Energy - Reflected External | 8% |
| % Total Solar Energy - Absorbed | 18% |
| Shading Coefficient (SC) | 0.92 |
| Solar Heat Gain Coefficient (SHGC) | 0.80 |
| U Factor | 1.05 |
| UV Rejection | ≥ 99% |
| Emissivity | 0.90 |
| Light to Solar Gain | 1.09 |
| Total Solar Energy Rejected (TSER) | 20% |
| IR Rejection (see PDF for details) | 34% |
| Infrared Energy Rejection (IRER) | 24% |
| Film Thickness | 0.0095" |
| Structural Components | 0.008" |
| Structure | Multi-Ply Laminate |
| Adhesive Type | Acrylic Pressure Sensitive |
| Longitudinal Tensile Strength | 28,000 PSI Avg. MD/TD |
| Traverse Tensile Strength | 36,000 PSI Avg. MD/TD |
| Break Strength | 240 lbs. Per Inch (Width) |
| Longitudinal Elongation at Break | 150% |
| Traverse Elongation at Break | 100% |
| Yield Strength | 14,000 PSI Avg. MD/TD |
| Elongation at Yield | 120% |
| Peel Strength | 5 to 6 lbs. Per Inch Width |
| Product specs | |
| % Visible Light - Trans. | 85% |
| % Visible Light - Reflected External | 10% |
| % Visible Light - Reflected Internal | 10% |
| % Visible Light - Glare Reduction | 4% |
| % Total Solar Energy - Trans. | 71% |
| % Total Solar Energy - Reflected External | 8% |
| % Total Solar Energy - Absorbed | 21% |
| Shading Coefficient (SC) | 0.89 |
| Solar Heat Gain Coefficient (SHGC) | 0.78 |
| U Factor | 1.04 |
| UV Rejection | ≥ 99% |
| Emissivity | 0.90 |
| Light to Solar Gain | 1.10 |
| Total Solar Energy Rejected (TSER) | 22% |
| IR Rejection (see PDF for details) | 41% |
| Infrared Energy Rejection (IRER) | 27% |
| Film Thickness | 0.017" |
| Structural Components | 0.015" |
| Structure | Multi-Ply Laminate |
| Adhesive Type | Acrylic Pressure Sensitive |
| Longitudinal Tensile Strength | 28,000 PSI Avg. MD/TD |
| Traverse Tensile Strength | 36,000 PSI Avg. MD/TD |
| Break Strength | 450 lbs. Per Inch (Width) |
| Longitudinal Elongation at Break | 150% |
| Traverse Elongation at Break | 100% |
| Yield Strength | 14,000 PSI Avg. MD/TD |
| Elongation at Yield | 120% |
| Peel Strength | 5 to 6 lbs. Per Inch Width |
| Product specs | |
| % Visible Light - Trans. | 44% |
| % Visible Light - Reflected External | 28% |
| % Visible Light - Reflected Internal | 27% |
| % Visible Light - Glare Reduction | 51% |
| % Total Solar Energy - Trans. | 31% |
| % Total Solar Energy - Reflected External | 24% |
| % Total Solar Energy - Absorbed | 45% |
| Shading Coefficient (SC) | 0.51 |
| Solar Heat Gain Coefficient (SHGC) | 0.44 |
| U Factor | 0.95 |
| UV Rejection | ≥ 99% |
| Emissivity | 0.70 |
| Light to Solar Gain | 0.99 |
| Total Solar Energy Rejected (TSER) | 56% |
| IR Rejection (see PDF for details) | 83% |
| Infrared Energy Rejection (IRER) | 62% |
| Film Thickness | 0.010" |
| Structural Components | 0.0085" |
| Structure | Multi-Ply Laminate |
| Adhesive Type | Acrylic Pressure Sensitive |
| Longitudinal Tensile Strength | 28,000 PSI Avg. MD/TD |
| Traverse Tensile Strength | 36,000 PSI Avg. MD/TD |
| Break Strength | 240 lbs. Per Inch (Width) |
| Longitudinal Elongation at Break | 150% |
| Traverse Elongation at Break | 100% |
| Yield Strength | 14,000 PSI Avg. MD/TD |
| Elongation at Yield | 120% |
| Peel Strength | 5 to 6 lbs. Per Inch Width |
| Product specs | |
| % Visible Light - Trans. | 17% |
| % Visible Light - Reflected External | 56% |
| % Visible Light - Reflected Internal | 58% |
| % Visible Light - Glare Reduction | 81% |
| % Total Solar Energy - Trans. | 12% |
| % Total Solar Energy - Reflected External | 45% |
| % Total Solar Energy - Absorbed | 43% |
| Shading Coefficient (SC) | 0.27 |
| Solar Heat Gain Coefficient (SHGC) | 0.23 |
| U Factor | 0.88 |
| UV Rejection | ≥ 99% |
| Emissivity | 0.58 |
| Light to Solar Gain | 0.74 |
| Total Solar Energy Rejected (TSER) | 77% |
| IR Rejection (see PDF for details) | 95% |
| Infrared Energy Rejection (IRER) | 78% |
| Film Thickness | 0.010" |
| Structural Components | 0.0085" |
| Structure | Multi-Ply Laminate |
| Adhesive Type | Acrylic Pressure Sensitive |
| Longitudinal Tensile Strength | 28,000 PSI Avg. MD/TD |
| Traverse Tensile Strength | 36,000 PSI Avg. MD/TD |
| Break Strength | 240 lbs. Per Inch (Width) |
| Longitudinal Elongation at Break | 150% |
| Traverse Elongation at Break | 100% |
| Yield Strength | 14,000 PSI Avg. MD/TD |
| Elongation at Yield | 120% |
| Peel Strength | 5 to 6 lbs. Per Inch Width |
| Product specs | |
| % Visible Light - Trans. | 43% |
| % Visible Light - Reflected External | 14% |
| % Visible Light - Reflected Internal | 17% |
| % Visible Light - Glare Reduction | 51% |
| % Total Solar Energy - Trans. | 34% |
| % Total Solar Energy - Reflected External | 14% |
| % Total Solar Energy - Absorbed | 52% |
| Shading Coefficient (SC) | 0.57 |
| Solar Heat Gain Coefficient (SHGC) | 0.49 |
| U Factor | 0.95 |
| UV Rejection | ≥ 99% |
| Emissivity | 0.71 |
| Light to Solar Gain | 0.88 |
| Total Solar Energy Rejected (TSER) | 51% |
| IR Rejection (see PDF for details) | 76% |
| Infrared Energy Rejection (IRER) | 55% |
| Film Thickness | 0.010" |
| Structural Components | 0.0085" |
| Structure | Multi-Ply Laminate |
| Adhesive Type | Acrylic Pressure Sensitive |
| Longitudinal Tensile Strength | 28,000 PSI Avg. MD/TD |
| Traverse Tensile Strength | 36,000 PSI Avg. MD/TD |
| Break Strength | 240 lbs. Per Inch (Width) |
| Longitudinal Elongation at Break | 150% |
| Traverse Elongation at Break | 100% |
| Yield Strength | 14,000 PSI Avg. MD/TD |
| Elongation at Yield | 120% |
| Peel Strength | 5 to 6 lbs. Per Inch Width |
| Product specs | |
| % Visible Light - Trans. | 36% |
| % Visible Light - Reflected External | 15% |
| % Visible Light - Reflected Internal | 22% |
| % Visible Light - Glare Reduction | 60% |
| % Total Solar Energy - Trans. | 28% |
| % Total Solar Energy - Reflected External | 15% |
| % Total Solar Energy - Absorbed | 57% |
| Shading Coefficient (SC) | 0.51 |
| Solar Heat Gain Coefficient (SHGC) | 0.45 |
| U Factor | 0.96 |
| UV Rejection | ≥ 99% |
| Emissivity | 0.73 |
| Light to Solar Gain | 0.80 |
| Total Solar Energy Rejected (TSER) | 55% |
| IR Rejection (see PDF for details) | 82% |
| Infrared Energy Rejection (IRER) | 59% |
| Film Thickness | 0.010" |
| Structural Components | 0.0085" |
| Structure | Multi-Ply Laminate |
| Adhesive Type | Acrylic Pressure Sensitive |
| Longitudinal Tensile Strength | 28,000 PSI Avg. MD/TD |
| Traverse Tensile Strength | 36,000 PSI Avg. MD/TD |
| Break Strength | 240 lbs. Per Inch (Width) |
| Longitudinal Elongation at Break | 150% |
| Traverse Elongation at Break | 100% |
| Yield Strength | 14,000 PSI Avg. MD/TD |
| Elongation at Yield | 120% |
| Peel Strength | 5 to 6 lbs. Per Inch Width |
| Product specs | |
| % Visible Light - Trans. | 14% |
| % Visible Light - Reflected External | 49% |
| % Visible Light - Reflected Internal | 20% |
| % Visible Light - Glare Reduction | 85% |
| % Total Solar Energy - Trans. | 14% |
| % Total Solar Energy - Reflected External | 41% |
| % Total Solar Energy - Absorbed | 46% |
| Shading Coefficient (SC) | 0.31 |
| Solar Heat Gain Coefficient (SHGC) | 0.27 |
| U Factor | 0.94 |
| UV Rejection | ≥ 99% |
| Emissivity | 0.69 |
| Light to Solar Gain | 0.52 |
| Total Solar Energy Rejected (TSER) | 73% |
| IR Rejection (see PDF for details) | 91% |
| Infrared Energy Rejection (IRER) | 69% |
| Film Thickness | 0.011" |
| Structural Components | 0.0095" |
| Structure | Multi-Ply Laminate |
| Adhesive Type | Acrylic Pressure Sensitive |
| Longitudinal Tensile Strength | 28,000 PSI Avg. MD/TD |
| Traverse Tensile Strength | 36,000 PSI Avg. MD/TD |
| Break Strength | 240 lbs. Per Inch (Width) |
| Longitudinal Elongation at Break | 150% |
| Traverse Elongation at Break | 100% |
| Yield Strength | 14,000 PSI Avg. MD/TD |
| Elongation at Yield | 120% |
| Peel Strength | 5 to 6 lbs. Per Inch Width |
| Product specs | |
| % Visible Light - Trans. | 26% |
| % Visible Light - Reflected External | 29% |
| % Visible Light - Reflected Internal | 15% |
| % Visible Light - Glare Reduction | 71% |
| % Total Solar Energy - Trans. | 25% |
| % Total Solar Energy - Reflected External | 26% |
| % Total Solar Energy - Absorbed | 49% |
| Shading Coefficient (SC) | 0.45 |
| Solar Heat Gain Coefficient (SHGC) | 0.39 |
| U Factor | 0.96 |
| UV Rejection | ≥ 99% |
| Emissivity | 0.72 |
| Light to Solar Gain | 0.65 |
| Total Solar Energy Rejected (TSER) | 61% |
| IR Rejection (see PDF for details) | 82% |
| Infrared Energy Rejection (IRER) | 55% |
| Film Thickness | 0.011" |
| Structural Components | 0.0095" |
| Structure | Multi-Ply Laminate |
| Adhesive Type | Acrylic Pressure Sensitive |
| Longitudinal Tensile Strength | 28,000 PSI Avg. MD/TD |
| Traverse Tensile Strength | 36,000 PSI Avg. MD/TD |
| Break Strength | 240 lbs. Per Inch (Width) |
| Longitudinal Elongation at Break | 150% |
| Traverse Elongation at Break | 100% |
| Yield Strength | 14,000 PSI Avg. MD/TD |
| Elongation at Yield | 120% |
| Peel Strength | 5 to 6 lbs. Per Inch Width |
| Product specs | |
| % Visible Light - Trans. | 65% |
| % Visible Light - Reflected External | 26% |
| % Visible Light - Reflected Internal | 27% |
| % Visible Light - Glare Reduction | 27% |
| % Total Solar Energy - Trans. | 43% |
| % Total Solar Energy - Reflected External | 30% |
| % Total Solar Energy - Absorbed | 27% |
| Shading Coefficient (SC) | 0.58 |
| Solar Heat Gain Coefficient (SHGC) | 0.51 |
| U Factor | 0.94 |
| UV Rejection | ≥ 99% |
| Emissivity | 0.68 |
| Light to Solar Gain | 1.28 |
| Total Solar Energy Rejected (TSER) | 49% |
| IR Rejection (see PDF for details) | 81% |
| Infrared Energy Rejection (IRER) | 56% |
| Film Thickness | 0.0105" |
| Structural Components | 0.009" |
| Structure | Multi-Ply Laminate |
| Adhesive Type | Acrylic Pressure Sensitive |
| Longitudinal Tensile Strength | 28,000 PSI Avg. MD/TD |
| Traverse Tensile Strength | 36,000 PSI Avg. MD/TD |
| Break Strength | 240 lbs. Per Inch (Width) |
| Longitudinal Elongation at Break | 150% |
| Traverse Elongation at Break | 100% |
| Yield Strength | 14,000 PSI Avg. MD/TD |
| Elongation at Yield | 120% |
| Peel Strength | 5 to 6 lbs. Per Inch Width |
The document provides detailed performance measurements of various SafetyShield® films, including their solar energy rejection, UV rejection, and physical properties, demonstrating their effectiveness in glare reduction, infrared energy rejection, and tensile strength.
DownloadA public elementary school in Ballston Spa, N.Y. upgraded its fire-rated, wire mesh glass to meet impact standards using SafetyShield 800 film, improving safety without compromising the glass's fire-stop performance.
DownloadDiscover how Baylor St. Luke’s Medical Center improved patient safety and protected valuable medical equipment using Madico’s SafetyShield films, installed by The Enpro Group, which provide comprehensive protection against natural and man-made disasters.
DownloadLearn how the Griner Engineering Building in St. Petersburg, Florida, achieved compliance with modern building codes and enhanced occupant safety using Madico’s SafetyShield 800 Reflective Silver 20 film, installed by Film Solutions, LLC, during a comprehensive renovation project.
DownloadMadico's FrameGard Anchoring System, designed for use with SafetyShield window films, ensures treated glass remains securely in place during incidents, offering certified performance in blast mitigation and improved safety by mechanically clamping the filmed glass to the window frame, absorbing energy, and preventing glass shards from causing harm.
DownloadMadico's GullWing Anchoring System, used with SafetyShield window films, absorbs and disperses impact energy across the entire glazed area, retaining glass fragments and preventing debris from entering a room. This system offers certified performance and comes in various sizes to fit different window frames, ensuring optimal safety and security.
DownloadMadico's LifeLine Anchoring System works with SafetyShield film to provide superior protection by absorbing and redirecting blast energy, preventing glass shards from entering buildings. This system is especially effective in industrial settings, offering tested performance up to 10 psi to reduce injury and property damage during catastrophic events.
DownloadMadico's Wet Glaze Anchoring System enhances the performance of SafetyShield window films by absorbing and distributing energy from impacts and blasts, keeping glass fragments contained and reducing the risk of injury and property damage. Ideal for retrofit applications, this system offers a cost-effective solution for enhancing glass safety and security.
Download
